USB3.0视频采集盒

USB3.0视频采集盒棒双口SDI HDMI

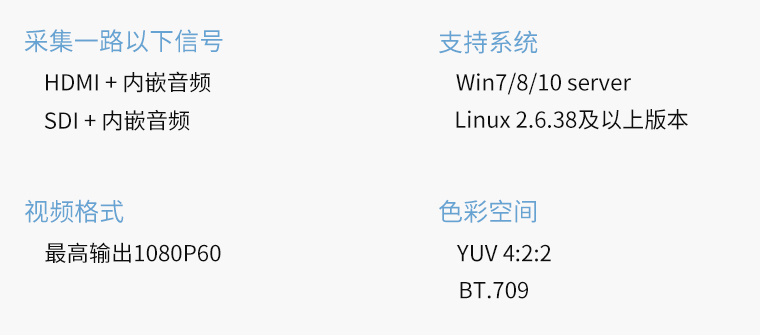

性能特点:

型号:UC3200HS


产品详情

接口
数据通道USB3.0
输入接口1xSDI,1xHDMI 1.4
输出接口USB3.0 SuperSpeed(兼容USB2.0)
视频输入1080P50/60,1080I50/60,720P50/60,576P,576I,480P,480I
音频输入HDMI/SDI 内嵌音频
规格
HDMI/SDI数据规格HDMI 1.4a complianceSupport 1080P/60HZ 8-bit,(RGB,YUV) SD/HD/3G-SDISMPTE-259/274/296/372/424/425/292 compliance
HDMI/SDI数据带宽HDMI:165MHZ,SDI:1.485Gb/s2.97Gb/
视频规格UVC (USB video class) 兼容
音频规格UAC (USB audio class) 兼容
色彩空间YUY2 4:2:2
录制模式软件压缩,实时数据
概述
操作系统Windows (7, 8, 8.1,10), Linux (kernel version 2.6.38 and above), Windows Server 2008 R2
兼容软件Vmix,Wirecast,OBS,VJ,Xsplit,Windows Media Encoder, ,Adobe Flash Media Live Encoder, Real Producer Plus, VLC, AMCAP etc.
兼容开发工具DirectShow (Windows), DirectSound (Windows),V4L2
固件升级支持固件升级
尺寸70x100x24mm
包装尺寸100x146x53mm
净重/毛重0.2/0.3kg
功耗<= 3.5 W
工作温度0-50 degree
存储温度-20-70 degree
存储湿度5%-90%
