PCIe视频采集卡

HDMI高画质视频采集卡1080P60

性能特点:

型号:UC3250H

HDMI 1.4a HDCP

支持Win7/8/10 Server系统

支持Linux系统

YUV 4:2:2

BT.709

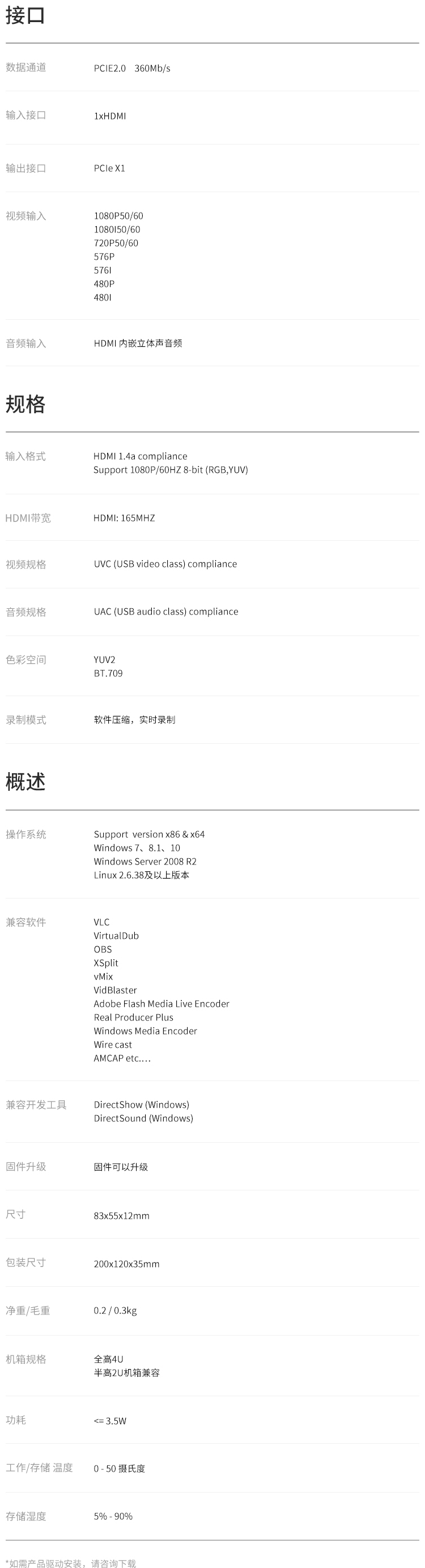

产品详情

接口PCIe2.0360MB/s
输入接口1xHDMI
输出PCIeX1
视频规格1080P50/60,1080I50/60,720P50/60,576P,576I,480P,480I
音频HDMI
操作系统Windows (7, 8, 8.1,10), Linux (kernel version 2.6.38 and above), OS X (10.8 and above)
标准
输入格式HDMI 1.4a complianceSupport 1080P/60HZ 8-bit,(RGB,YUV)
带宽HDMI:165MHZ,
视频规格UVC (USB video class) compliance
音频规格UAC (USB audio class) compliance
色彩空间YUY2
一般
操作系统支持 x86 & x64 from Windows 78.110Windows Server 2008 R2
兼容软件Vmix,Wirecast,OBS,Windows Media Encoder, ,Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wire cast, AMCAP etc.…
兼容开发接口DirectShow (Windows), DirectSound (Windows)
升级可固件升级
尺寸20x100x122mm
功耗<= 3.5 W
工作温度0-50 degree
存储温度-20-70 degree
湿度5%-90%
